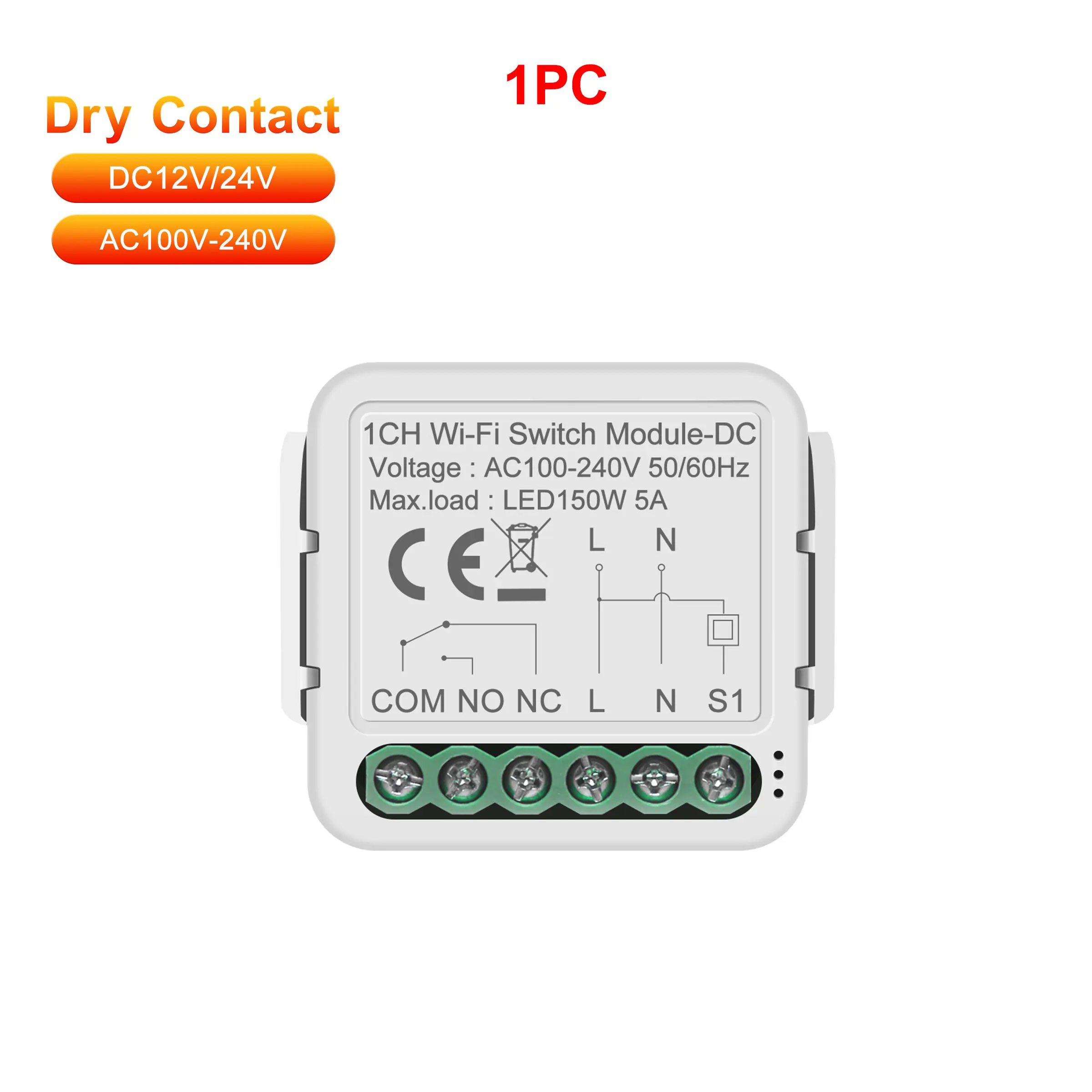

GIRIER Smart Dry Contact WiFi Switch Module Smart Home DIY Breaker Relay DC 12/24V AC 100-240V Compatible with Alexa Google Home

GIRIER Smart WiFi Switch Module 5A Dry Contact Smart Home DIY Breaker

Relay, DC 12/24V AC 100-240V Works with Alexa Hey Google

Safe,Convenient,Better Home

What’s Dry Contact Module?

The dry contact module is a versatile electrical switch that responds to external signals, controlling other electrical equipment. With no need to worry about directions or polarity during installation, simply ensure the correct signal current and voltage levels are maintained.

Why Choose Dry Contact Module?

Compatible with mechanical reset switch and rocker switch,suitable for various mounting boxes.

Works both low-voltage and high-voltage according to your different needs.
Neutral wire is required.

APP Remote Control

Turn on/off the devices effortlessly from anywhere after connected the module to TuyaSmart/Smart Life APP.

Convenient Voice Control

Just need simple voice commands to trigger the dry contact through Alexa/Google Home Assistant,turn on/off the device effortlessly and more conveniently. Enjoy your smart life.

Timer Schedule

With flexible timer setting, you can trigger connected devices on time while saving energy.

Relay Status Function

With Relay Status Function, you won’t have to worry about power outages as you can set on/off/remember the last status of the smart dry contact as relay status.

Professional Certificates

Trust in our professional certifications and high-quality products to provide peace of mind and ensure safety.

Sharing Function

Share the device to your family and friends,enjoying smart life together

SPECIFICATION

Product Type: WiFi Switch Module
Relay: NO,NC

Inpute Voltage: AC100-240V
Working Voltage: AC100-240V 50/60Hz;DC12V/24V
Max. Load: LED 150W, 5A
Operation Temp.: -10℃~ +40℃
Working Humidity: ≤90%
WIFI Protocol : IEEE 802.11b/g/n
Operation Frequency: 2.412GHz-2.484GHz
Operation Range: <100m
Dims (WxDxH): 39.2×39.2×18 mm
IP Rating: IP20
Warranty: 1 year
Certificates: CE ROHS
APP: TuyaSmart/ Smart Life
Voice: Alexa/Google Home Assistant/Alice
Hub Requirement:No

Warm Tips:

1.The switch module terminal reserves the access of manual override function for the end-user to switch on/off. Switch on/off for permanent on/off function.
Notes:
1) Both the adjustment on App and switch can overwrite each other, the last adjustment remains in memory.
2) The App control is synchronized with the manual switch.
2.Installation must be carried out by a qualified electrician in accordance with local regulations.
3.If you choose Tuya ZigBee devices,please use Tuya ZigBee hub as a center.
4.If you have any question after you received the parcel ,please feel free to contact to our online after-sales,we will help you solve the problem.

5.The Input Voltage Only Supports AC100-240V.

Wiring Diagram

The Supply Voltage Only Supports AC100-240V.

Please notice that the wiring is just for reference,the actual wiring diagram depends on your own access control system.

Wiring Diagram for Home Access Control System (NC)

Please notice that the wiring is just for reference,the actual wiring diagram depends on your own access control system.

Suitable for Everywhere

Compatible with mechanical reset switch and rocker switch,suitable for various mounting boxes.
Works both low-voltage and high-voltage according to your different needs.
Neutral wire is required.

Control It From Anywhere

Turn on/off the devices effortlessly from anywhere after connected the module to TuyaSmart/Smart Life APP.

Convenient Voice Control

Through Alexa/Google Home Assistant/Alice,turn on/off the device effortlessly and more conveniently.

Timer Schedule

With flexible timer setting, you can trigger connected devices on time while saving energy.

Relay Status Function

With Relay Status Function, you won’t have to worry about power outages as you can set on/off/remember the last status of the smart dry contact as relay status.

Professional Certificates

Trust in our professional certifications and high-quality products to provide peace of mind and ensure safety. Upgrade your smart home with the smart dry contact module and experience the extraordinary.

Sharing Function

Share the device to your family and friends,enjoying smart life together

SPECIFICATION

FAQ

Q1: What should I do if I can’t configure the switch module?
a. Please check whether device is powered on.
b.Make sure your mobile and switch module are under the same 2.4 GHz WiFi network.
c.Whether it’s in good internet conditions.
d.Make sure the password entered in App is correct.
e.Make sure the wiring is correct.

Q2: What device can be connected to this dry contact switch module?
Most of your household electrical appliances can be,such as lamps, laundry machine, coffee maker, etc.

Q3: What happens if the WiFi goes off?
You can still control the device connected the switch module with your traditional switch and once WiFi is active again the device connected to module will connect automatically to your WiFi network.

Q4: What should l do if l change the WiFi network or change the password?
You have to re-connect our Wi-Fi switch module to the new Wi-Fi network accordingly as per the App User Manual.

Q5: How do l reset the device?
Power on/off device for 5 times until the indicator light flash.
